In my previous article on AWS IAM Security Best Practices, we covered a bunch of theoretical best practices on AWS IAM. In this tutorial, we will cover the basics of managing AWS IAM using Terraform.

Side note: this blog post assumes that you already understand what Terraform is and know the basics of it. If not, start with a Terraform official tutorial.

We'll see:

  • Why and how to delete the Root user access key.
  • How to create Admin Group/User
  • How to enforce MFA with Customer-Managed Policy & Policy Condition
  • How to customize password policy
  • how to centralize IAM to reduce operational overhead for multiple AWS accounts
  • how to create an EC2 instance profile

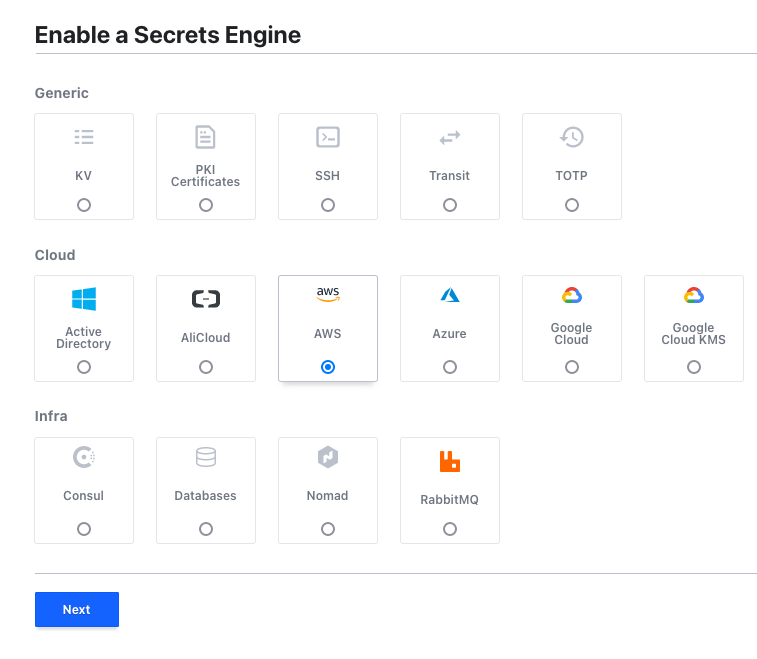

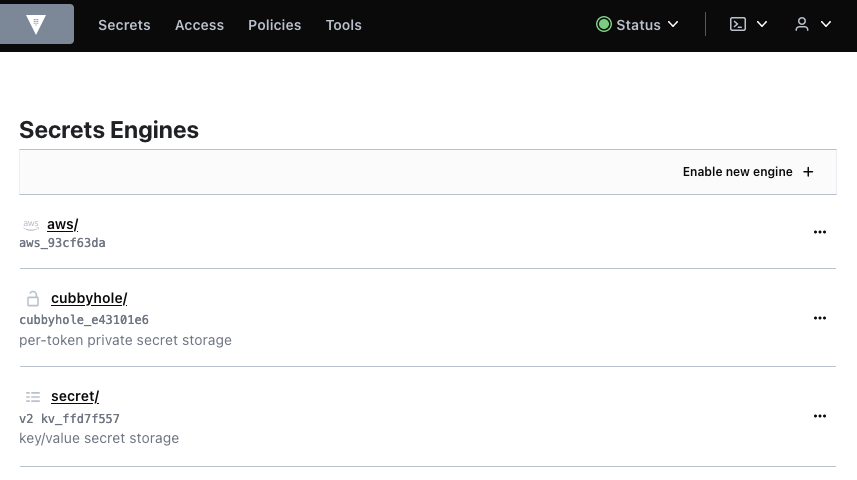

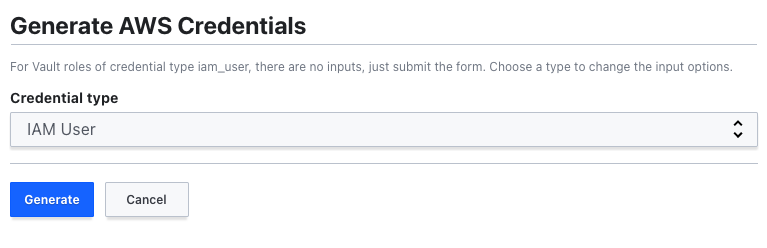

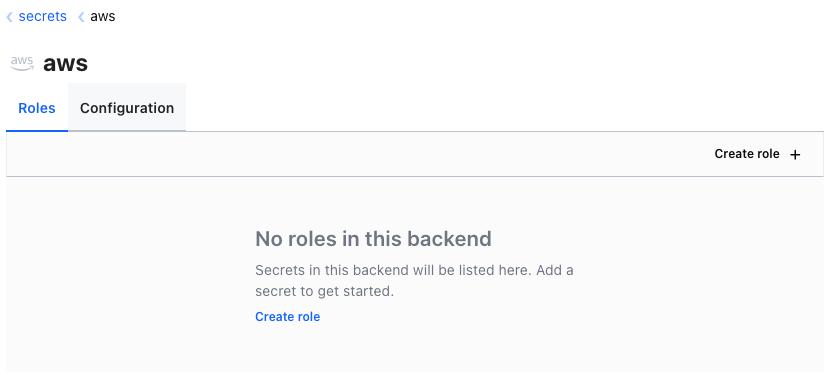

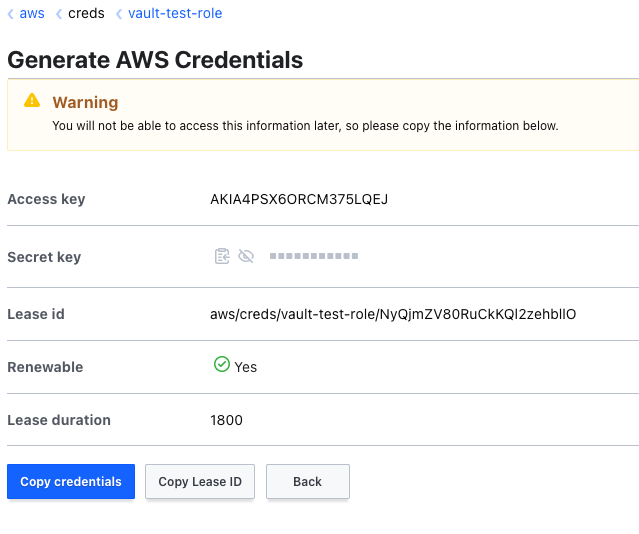

  • how to use the HashiCorp Vault AWS engine for Just-In-Time access


1. Delete Access Keys of the Root User

OK, in fact, we'll start by breaking the rules. How? By using the console. Why? Because we need to use the AWS Management Console to delete access keys for the root user:

  • Use your AWS account email address and password to sign in to the AWS Management Console as the AWS account root user.
  • Choose your account name in the navigation bar, and then choose "Security credentials".
  • Under the "Access keys for CLI, SDK, & API access" section, find the access key, and then, under the "Actions" column, choose Delete.

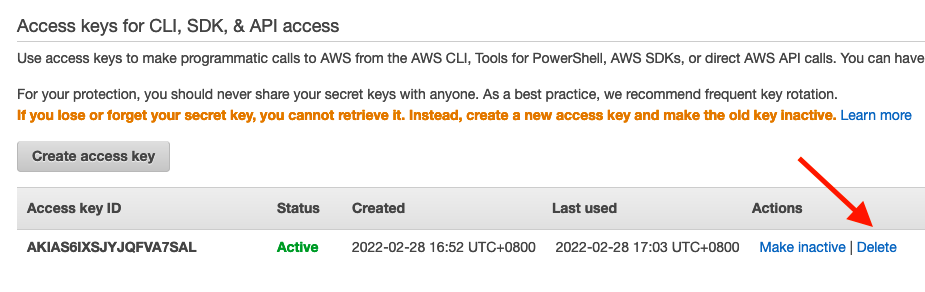

Delete root user access key
Delete root user access key

The access key for your AWS account root user gives full access to all your resources for all AWS services. You cannot reduce the permissions associated with your AWS account root user access key.

For most day-to-day operations, you don't need to use the root user: admin users are more than enough.

That's why you should lock it away by deleting the Access key.

We should try to avoid the usage of root users unless we absolutely have to. One such corner case would be if you had only one administrator user and that user accidentally removed admin permissions from themselves. In that case, you'd have to log in with your root user and restore their permissions.

Now, let's see how to create admin users using Terraform.

2. Create Admin Group/User

Prepare a file admin_user_group.tf with the following content (you can get all the code of this tutorial from this repo here):

resource "aws_iam_group" "administrators" {
  name = "Administrators"
  path = "/"

data "aws_iam_policy" "administrator_access" {
  name = "AdministratorAccess"

resource "aws_iam_group_policy_attachment" "administrators" {
  group      = aws_iam_group.administrators.name
  policy_arn = data.aws_iam_policy.administrator_access.arn

resource "aws_iam_user" "administrator" {
  name = "Administrator"

resource "aws_iam_user_group_membership" "devstream" {
  user   = aws_iam_user.administrator.name
  groups = [aws_iam_group.administrators.name]

resource "aws_iam_user_login_profile" "administrator" {
  user                    = aws_iam_user.administrator.name
  password_reset_required = true

output "password" {
  value     = aws_iam_user_login_profile.administrator.password
  sensitive = true

In the code snippet above, we:

  • create a group intended for administrators
  • read the ARN of the "AdministratorAccess," which is an AWS-managed policy
  • attach the "AdministratorAccess" policy to the group
  • create an admin user
  • add that user to the admin group
  • enable console login for that admin user
  • add the initial password as a sensitive output

If we apply it:

terraform init
terraform apply
terraform output password

We will create all those resources and print out the initial password.

Do I Need to Use Groups?

Short answer: yes.

Well, technically, if you never need more than one admin user across your AWS account, you don't have to create an admin group and then put a single user into that group. I mean, you can do it, but maybe it doesn't make much sense to you in the first place.

In the real world, though, you probably would have a group of admins instead of only one, so, the easier way to manage access for all admins is to create groups. Even if you have only one admin user at the moment, you need to bear in mind that your company, team, and project are subject to growth (maybe quicker than you'd imagine,) and although using a group to manage merely one user at the moment can seem redundant, it's a small price to pay to be a bit more future-proof.

The same principle applies to managing non-admin users. With the same method, we can create job function/project/team/etc., dedicated groups that will share the same sets of permissions, which is more secure and easy than user-level permission management.

Sensitive Output

In the example above, we have an output marked as sensitive = true:

output "password" {
  value     = aws_iam_user_login_profile.administrator.password
  sensitive = true

In Terraform, an output can be marked as containing sensitive material using the optional sensitive argument. Terraform will hide values marked as sensitive in the messages from terraform plan and terraform apply.

In the above example, our admin user has an output which is their password. By declaring it as sensitive, we won't see the value when we execute terraform output. We'd have to specifically ask Terraform to output that variable to see the content (or use the -json or -raw command-line flag.)

Here are two best practices for managing sensitive data with Terraform:

  • If you manage any sensitive data with Terraform (like database passwords, user passwords, or private keys), treat the state itself as sensitive data because they are stored in the state. For resources such as databases, this may contain initial passwords.
  • Store the state remotely to avoid storing it as plain-text JSON files. If we use a remote state, Terraform does not persist state to the local disk. We can even use some backends that can be configured to encrypt the state data at rest. Read this blog to know more about encryption at rest and encryption in transit.

3. Enforcing MFA: Customer-Managed Policy & Policy Condition Use Case

The way to enforce MFA in AWS isn't as straightforward as it can be, but it can be achieved with a single policy:


data "aws_iam_policy_document" "enforce_mfa" {
  statement {
    sid    = "DenyAllExceptListedIfNoMFA"
    effect = "Deny"
    not_actions = [
    resources = ["*"]
    condition {
      test     = "BoolIfExists"
      variable = "aws:MultiFactorAuthPresent"
      values   = ["false", ]

resource "aws_iam_policy" "enforce_mfa" {
  name        = "enforce-to-use-mfa"
  path        = "/"
  description = "Policy to allow MFA management"
  policy      = data.aws_iam_policy_document.enforce_mfa.json

There are a couple of important things to notice here.

Customer-Managed Policy

Contrary to the AdministratorAccess policy we used in the previous section (which is an AWS-managed policy), here we have defined a "customer-managed policy".

Note: we should try to use customer-managed policies over inline policies For most cases, you do not need the inline policy at all. If you are still interested, see an example of an inline policy here.

Multiple Ways to Create a Policy

There are multiple ways to create a policy, and the example above is only one of them: in this example, we created it using Terraform data.

We could also:

  • create a policy using JSON strings
  • convert a Terraform expression result to valid JSON syntax (see the example here)

The benefit of using "aws_iam_policy_document" data is that the code looks nice and clean because they are Terraform/HashiCorp's HCL syntax. However, it isn't always as straightforward as it seems, and debugging it would be especially painful if you don't use it regularly.

Sometimes, it's easier to write a JSON string and use that to create a policy. However, JSON strings in a Terraform source code file can look a bit weird and not clean (after all, they are multiline strings,) especially when they are of great length.

There isn't a one-size-fits-all choice here; you'd have to decide on your own which is best for your use case.

There is, however, an interesting advantage of using JSON strings: you can validate JSON policy in the AWS IAM console. See here for more information.

Policy Condition

In this example above, we used a "policy condition," which only makes the policy effective when there isn't a multi-factor authentication.

This policy loosely translates to:

"deny any operation that isn't MFA device-related if you don't have multi-factor authentication."

We can use aws_iam_group_policy_attachment to attach it to a group, then all the users in that group are affected. For example:

resource "aws_iam_group_policy_attachment" "enforce_mfa" {
  group      = aws_iam_group.administrators.name
  policy_arn = aws_iam_policy.enforce_mfa.arn

This makes sure the administrator group must enable MFA.

4. Strong Password Policy & Password Rotation

The AWS default password policy enforces the following:

  • Minimum password length of 8 characters and a maximum length of 128 characters.
  • Minimum of three of the following mix of character types: uppercase, lowercase, numbers, and ! @ # $ % ^ & * ( ) _ + - = [ ] { } | ' symbols.
  • Not be identical to your AWS account name or email address.

We can, however, use a customized and strongerpassword_policy.tf:

resource "aws_iam_account_password_policy" "strict" {  minimum_password_length        = 10
require_uppercase_characters   = true
require_lowercase_characters   = true
require_numbers                = true
require_symbols                = true
allow_users_to_change_password = true

By using aws_iam_account_password_policy, we can also specify how often the users should change their password, and whether they could reuse their old passwords or not:

resource "aws_iam_account_password_policy" "strict" {
# omitted
max_password_age               = 90
password_reuse_prevention      = 3

5. Centralized IAM: Cross-Account Access

5.1 Why Do I Need This

In a medium to large-sized team or company, using a multi-account strategy is common to ensure maximum resource separation and precise permission management.

For example, it's common to see the following 3 accounts in an organization:

  • dev
  • test
  • prod

Creating a user in each account for each team member can be tedious. Yes, we can use Terraform to automate the process, but there are still two major drawbacks:

  1. you'd have to create three different sets of Terraform scripts, one for each environment;
  2. each team member would have to use three different sets of username/passwords to log in to each environment.

Solution: create a "central" account, and only create users there; for other accounts like dev/test/prod, we grant access to the users inside the "central" account.

The idea is to use a role to delegate access to resources in different AWS accounts. By setting up centralized cross-account access in this way, you don't have to create individual IAM users in each account. In addition, users don't have to sign out of one account and sign in to another to access resources in different AWS accounts.

5.2 Prerequisites

We will use two AWS accounts in this tutorial:

  • Central account: this is where we create a user. This user will try to access resources in the dev account. Remember to create a test user here first before proceeding to the next section.
  • Dev account: this is where we run the Terraform scripts to create roles, to allow central account users to access the dev account resources. Note that the Terraform stuff in the following section (1.3) is executed in this account.

5.3 Setup Cross-Account Access with Terraform

Prepare the following files:

  • main.tf
  • output.tf
  • variables.tf

You can get all the code of this tutorial from this repo here.

Content of main.tf:

data "aws_iam_policy_document" "assume_role" {
  statement {
    actions = [
    principals {
      type        = "AWS"
      identifiers = [var.account_id]
    effect = "Allow"

resource "aws_iam_role" "test_role" {
  name               = "test_role"
  assume_role_policy = data.aws_iam_policy_document.assume_role.json

resource "aws_iam_role_policy" "test_policy" {
  name = "test_policy"
  role = aws_iam_role.test_role.id

  policy = jsonencode({
    "Version" : "2012-10-17",
    "Statement" : [
        "Effect" : "Allow",
        "Action" : "s3:ListAllMyBuckets",
        "Resource" : "*"

The code snippet above means:

  • We created a test role, with permission to list S3 buckets in the AWS dev account.
  • We used Terraform data aws_iam_policy_document to allow users from the AWS central account to assume the test role so that users from the central account have access to the dev account.

Content of variables.tf:

variable "account_id" {
  type        = string
  description = "allow this account to assume roles"

Content of output.tf:

output "role_arn" {
  value = aws_iam_role.test_role.arn

Then create a terraform.tfvars:


Put your central account ID in the terraform.tfvars file before continuing.

Then, with your dev account AWS access keys, execute:

terraform apply

And in the output, we will get an AWS role ARN like the following:


5.4 Testing the Access

Let's test the cross-account access with AWS CLI. Note that assume role can also work in the AWS Console.

First, with the central account AWS access key set up, we can run:

aws sts assume-role --role-arn "arn:aws:iam::858104165444:role/test_role" --role-session-name "tiexin-test-access"

The role ARN is the Terraform output from the previous section.

You will see output like the following:

    "Credentials": {
        "SecretAccessKey": "wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY",
        "Expiration": "2014-12-11T23:08:07Z",
        "AccessKeyId": "AKIAIOSFODNN7EXAMPLE"

The AccessKeyId, SecretAccessKey, and SessionToken are what we need to proceed with. Run:


(remember to clean your bash history after the session!)

At this point, any following commands will run under the permissions of the role identified by those credentials. We can run aws sts get-caller-identity to check that we are already assuming a role under the dev account and not our original user in the central account.

If we execute:

aws s3 ls

We can list all the buckets in the dev account.

5.5 AWSume

The previous testing process is a bit tedious because we need to export a lot of sensitive stuff, which is not recommended.

Here, I introduce a cool CLI tool for you: AWSume. AWSume is a convenient way to manage session tokens and assume role credentials.

After we get it installed and configured, we can simply run one command:

awsume --role-arn arn:aws:iam::858104165444:role/test_role

And this does exactly what all those commands in the previous section did.

6. AWS Instance Profile

If you are using AWS EC2 instances, chances are you have deployed some apps on those instances, and those apps might need access to other AWS services.

For example, you wrote a small application that writes some data to an AWS S3 bucket. You deploy your app in an EC2 instance, and you must configure it correctly so that your app has the right permission to write to AWS S3.

6.1 Why Not Using Access Keys on EC2 Instances?

It is not absolutely not recommended to use an IAM user for machine-to-machine connection, for two reasons:

  • User access keys are long-lived static credentials, meaning they don't expire. If a key is compromised, it can be used for as long as the key is not revoked. This has big security implications since a malicious actor could be acting for a very long time undetected.
  • Since they don't expire, access keys are permanent security liability. Anyone who accesses the instance might get the key and use it from anywhere without notice. In other words, the risk of a leak is growing over time.

6.2 What Are Instance Profiles?

Amazon EC2 uses an instance profile as a container for an IAM role. When you create an IAM role using the IAM console, the console creates an instance profile automatically and gives it the same name as the role to which it corresponds. If you use the Amazon EC2 console to launch an instance with an IAM role or to attach an IAM role to an instance, you choose the role based on a list of instance profile names. In this way, apps that run on the EC2 instance can use the role's credentials when they access AWS resources.

TL;DR: it's safer to use IAM roles to manage permissions, and attach them to instances. Instance profiles, and roles in general, provide temporary (or dynamic) credentials on request. If those credentials leak, the damage is contained to their lifespan.

6.3 Launching an EC2 Instance with Instance Profile

Create a Terraform file with the following content:

resource "aws_iam_role" "role" {
  name = "test_role"
  path = "/"

  assume_role_policy = <<EOF
    "Version": "2012-10-17",
    "Statement": [
            "Action": "sts:AssumeRole",
            "Principal": {
               "Service": "ec2.amazonaws.com"
            "Effect": "Allow",
            "Sid": ""

resource "aws_iam_instance_profile" "test_profile" {
  name = "test_profile"
  role = aws_iam_role.role.name

data "aws_ami" "ubuntu" {
  most_recent = true

  filter {
    name   = "name"
    values = ["ubuntu/images/hvm-ssd/ubuntu-focal-20.04-amd64-server-*"]

  filter {
    name   = "virtualization-type"
    values = ["hvm"]

  owners = ["099720109477"] # Canonical

resource "aws_instance" "web" {
  ami                  = data.aws_ami.ubuntu.id
  instance_type        = "t3.micro"
  iam_instance_profile = aws_iam_instance_profile.test_profile.id

  tags = {
    Name = "HelloWorld"

And run:

terraform apply

The code snippet above does the following:

  • Create an IAM role (you can also attach policies to the role so that it has the correct permissions you want it to have) and delegate permissions to the EC2 service.
  • Create an instance profile, which serves as a container of the role.
  • Launching an EC2 instance with the instance profile, so that the EC2 instance has the permissions attached to the IAM role.

In this case, if you attach an S3 access policy to the role, the EC2 with this instance profile will get AWS S3 access without having to export access keys and secrets. Voilà!

7. Just-In-Time Access with HashiCorp Vault

Even if we already have Terraform, chances are, we still would have to create some temporary users for just-in-time accesses.

For example, one data engineer needs temporary access to an S3 bucket to verify some data. Maybe he only needs this permission for a one-time job, then he would not use AWS for a long time, so it doesn't make much sense to create a permanent account for him so that he has indefinite access.

For another, maybe your developer needs to get access to a production EC2 instance for debugging, which might also be a one-time job. If you are using Terraform to manage permissions, you probably already use groups for permissions, but it doesn't make sense to grant the whole group temporary prod access.

You get the idea: while you can give someone permanent access, most of the time, you don't have to, and you shouldn't, according to our zero-trust and least privilege access principles.

Even if you used a specific set of Terraform rules to create temporary roles for these temporary accesses, you'd still have to apply/destroy them manually, which is not only operational overhead, but also increases potential risks: what if you forgot to destroy permissions, and indefinite access is maintained?

In this section, we will use Vault to achieve true just-in-time access management for AWS IAM.

7.1 Vault Introduction

HashiCorp Vault can secure, store and tightly control access to tokens, passwords, certificates, and encryption keys for protecting secrets and other sensitive data using a UI, CLI, or HTTP API.

It has different types of engines to manage different types of secrets. For AWS, it has the AWS secrets engine, which generates AWS access credentials dynamically based on IAM policies. For more details on Vault, see this blog.

7.2 Installation

In this part, we will install Vault in a local macOS environment.

For other OS, check out the official doc here. For K8s installation, check out the official doc here. For production-ready installation, check out the doc here.


brew tap hashicorp/tap
brew install hashicorp/tap/vault

Then start the server by running:

vault server -dev

7.3 AWS Engine Configuration

If we visit and use the token to sign in, we are already in Vault!

Under the "Secrets Engines" tab, click the "enable new engine" button and choose AWS. Click next, then enable the engine:

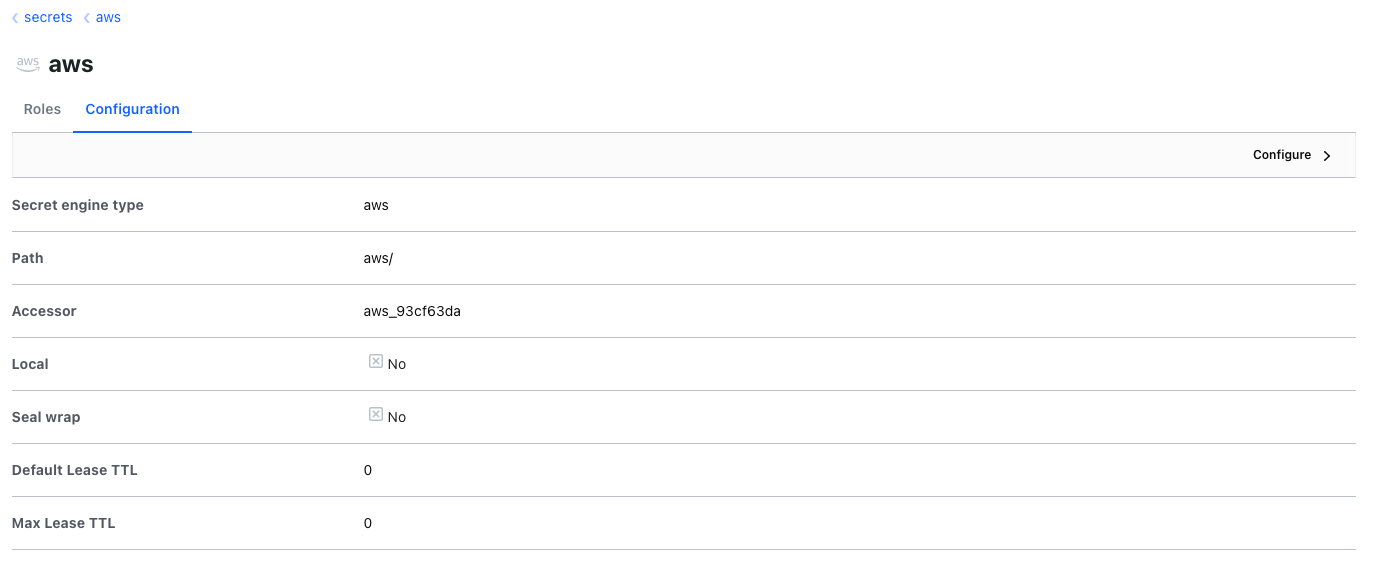

Then we go to the configuration tab of the AWS engine, and click "configure":

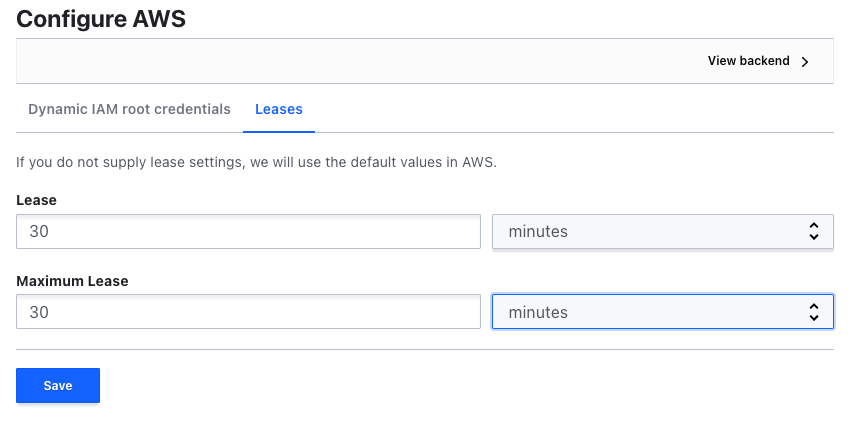

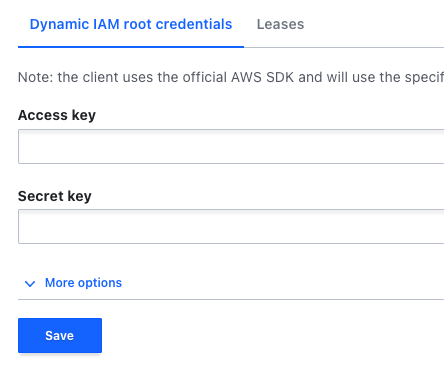

Then we put an AWS key and secret (who has IAM access) to the "dynamic IAM root credentials" tab, and in the "leases" tab, let's choose a reasonable time, say, 30 minutes:

Then we can go to the "secrets" tab, choose "AWS", then click "Create role":

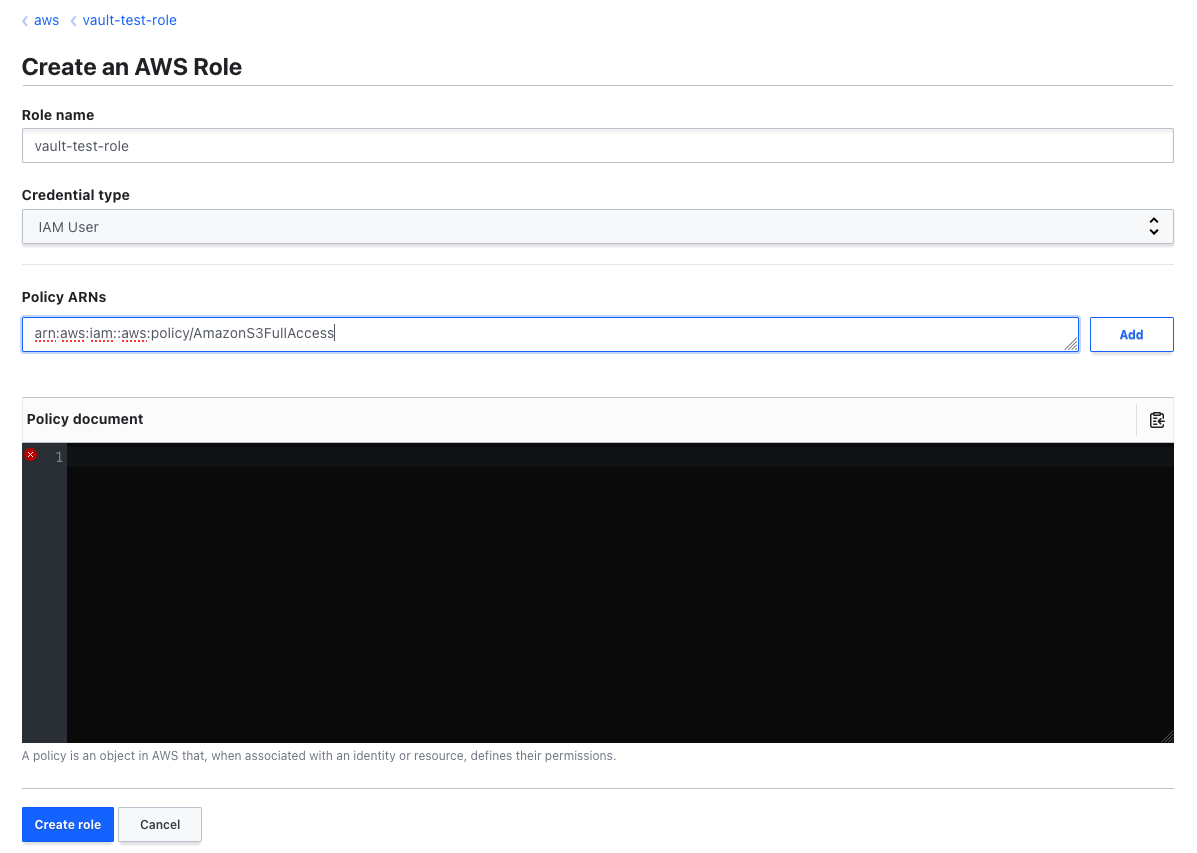

On the create role page, we put the following info:

For testing purposes, we use the role ARN arn:aws:iam::aws:policy/AmazonS3FullAccess which will give this role full S3 access. But don't worry, this role won't be created right away and it's managed by Vault.

7.4 Testing the Temporary Role

If we go to the secrets tab, in the AWS engine, for the test role we created, we can create a new credential:

Now if we use this user's key and secret, we have full S3 access. And, it's only valid for 30 minutes, after which, the user will be deleted.

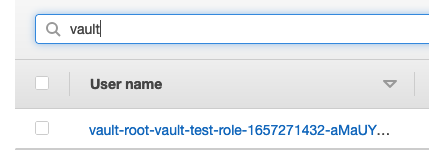

If we login to the AWS console and go to IAM, we can see this user:

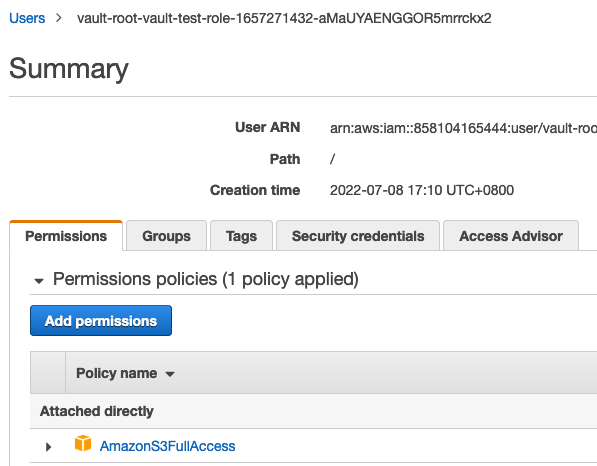

And it has the right permission:

There is more to learn if you want to make it production-ready, for example, you could explore DynamoDB Storage Backend and Auto-unseal with AWS KMS.

IAM has grown more and more complicated over the years. I hope this blog helped automate your daily routine and reduce your operational overhead.
Bonus: If you are interested in Terraform and want to know more about it, please read my other article 9 Extraordinary Terraform Best Practices That Will Change Your Infra World as well.
Enjoy and see you next time!

Pulumi VS Terraform: The Definitive Guide to Choosing Your IaC Tool
In this blog, we do a deep dive into Pulumi V.S. Terraform (and slightly touch the mechanism of AWS CDK/CDK for Terraform, for that matter).
Terraform Project for Managing Vault Secrets in a Kubernetes Cluster
This article uses Kubernetes Secrets as a native Kubernetes component for handling sensitive data at container runtime and Vault as a trusted storage and maintenance solution for sensitive data.
